Clayton Hotel, Manchester

Clayton Hotel, Manchester

Clayton Hotel, Manchester

PROJECT OVERVIEW

The Clayton Hotel is a new four star, 17-storey hotel on Portland street, Manchester.

This new hotel is operated by Dalata Hotel Group and incorporates 329 bedrooms, a ground floor bar, a restaurant at mezzanine level and a business centre with meeting rooms.

Hannan Associates were appointed as a sub-consultant to provide detailed mechanical design services for A+B Engineering, including ventilation, heating, cooling, domestic water services, above ground drainage and combined heat and power (CHP).

About This Project

5

END CLIENT : Portland Street Property Ltd

5

OUR CLIENT : A&B Engineering

5

PROJECT DURATION: 2019 - 2021

Get in touch

13 + 6 =

Unit 02 Tritax Park, Merseyside

Unit 02 Tritax Park, Merseyside

Unit 02 Tritax Park, Merseyside

PROJECT OVERVIEW

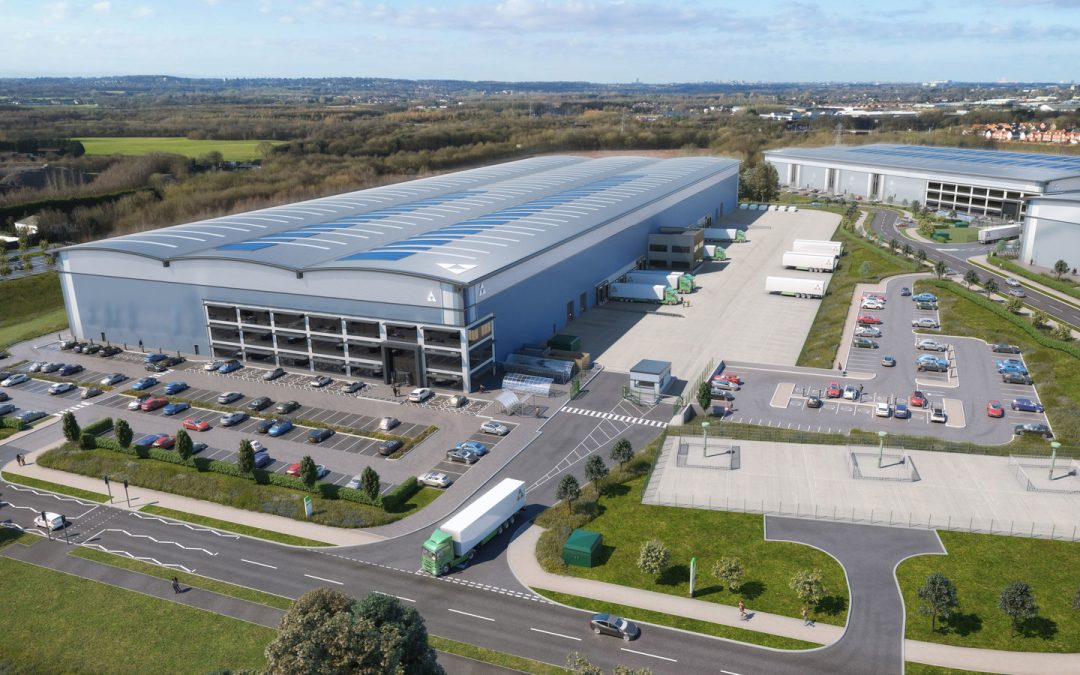

The Hannan Industrial team are currently providing Building Services Engineering consultancy to Tritax Big Box for the second logistics facility at Tritax Park, Merseyside.

Currently under construction, Unit 02 will provide 254,400sq ft of warehouse space along with 14,400 sq ft of office space.

Our duties included:

o Passive Design Analysis

o LZC Feasibility

o Part L2A Compliance

o External Lighting reports

o MEP Services Performance & Monitoring Duties

The building has been designed and built to achieve Net Zero Carbon in construction and a BREEAM Excellent rating.

We are working alongside UMC Architects, C4 Consulting, Tier Consulting, Gerald Eve and main contractor GMI Construction on the team.

The site forms part of the Halsnead Garden Village Sustainable Urban Extension (HSUE) which represents part of the wider vision for the Halsnead Garden Village and is allocated for employment uses and a Country Park.

Located east of J6 of the M62, Symmetry Park Merseyside is a sustainable 1 million sq ft employment park in Knowsley, which forms part of the Halsnead Garden Village Sustainable Urban Extension (HSUE) which represents part of the wider vision for the Halsnead Garden Village, one of Liverpool City Region’s most significant development sites and which will provide a major boost to the local economy. In partnership with The Land Restoration Trust, a 65-acre Country Park will form part of the employment site.

About This Project

5

CLIENT : Tritax Big Box

5

ARCHITECT : UMC Architects

5

CONTRACT DURATION: 2023 - ongoing

Get in touch

7 + 10 =

Weston M6, Crewe

Weston M6, Crewe

Weston M6, Crewe

PROJECT OVERVIEW

Hannans are providing building services engineering consultancy for Weston M6 in Crewe.

The new state-of-the-art commercial and business park is being brought forward in two phases.

Phase 1 includes an enabling works package comprising the estate access road and utilities infrastructure works, followed by the construction of three build-to-suit logistics/industrial units of 148,000 sq ft, 405,000 sq ft and 200,000 sq ft.

Phase 2 includes outline planning permission for 575,000 sq ft of build to suit industrial and logistics spaces and offices.

As a part of our role Hannans are providing:

o Building services design

o Part L compliance assessments

o Utilities infrastructure masterplanning

o BREEAM assessor duties

o Operational Energy Modelling

Each of the units is targeting an A-rated EPC, are designed to achieve a BREEAM rating of ‘Excellent’ and will be provided with electric vehicle charge points and dedicated roof space for PV array.

We are very pleased to be working alongside AEW Architects, CW Studio, Quartz Projects Services, WSP and Calibre Consulting Engineers on the project design team.

The site is situated between the A500 and David Whitby Way in the emerging Basford East neighbourhood. Once completed the scheme is anticipated to create 2,9000 new jobs.

About This Project

5

CLIENT : Muse

5

ARCHITECT : AEW Architects

5

CONTRACT DURATION: 2020 - ongoing

Jamie Hall

Jamie Hall

Director

Email: [email protected]
Phone: +44(0)161 337 2200

Get in touch

11 + 15 =

Cross Lane, Salford

Cross Lane, Salford

Cross Lane, Salford

PROJECT OVERVIEW

This project involves the design and construction of a new 27-storey student accommodation tower providing 538 student beds with associated amenity and a roof garden.

The Hannan residential team are providing Building Services Engineering consultancy and BREEAM Assessment services. The project is targeting BREEAM ‘Very Good’.

Planning for the scheme has been granted.

The scheme is located close to Salford university and Salford Crescent train station, at the site of the former McDonalds regional headquarters.

We are very pleased to join Broadway Malyan, Quantem, Davies Maguire &  Layer Studio on Q Developments’ project design team.

Energy Reduction Design Features

To help minimise energy usage, the scheme will include vertical Waste Water Heat Recovery systems, which will take waste water from students showers, recover waste heat and pre heat incoming cold water supply feeding the showers.

The scheme utilises low GWP refrigerant modular air to water heat pumps to provide hot water between 60°C and 90°C which is then distributed throughout the building to outlets.

In order to minimise excessive pressures within the system and to reduce energy consumption associated with pumping water to the upper floors, the dedicated cold water and sprinkler booster distribution systems will be divided into two domestic cold water booster systems, upper and lower floor zones, which will include Variable Speed High-efficiency pump sets.

Similarly, the design of soil and waste drainage systems needed careful consideration due to the overall height of the building to avoid excess pressures building up within stacks. This is done through careful design and the use of secondary ventilation pipework and AAAVs.

About This Project

5

CLIENT : Q Developments

5

ARCHITECT : Broadway Malyan

5

CONTRACT DURATION: April 2024 - ongoing

Greenhaus, Salford

The Slate Yard, New Bailey

Willohaus Peru Street, Salford

Get in touch

6 + 8 =

Freetrade Exchange

Freetrade Exchange

Freetrade Exchange, Manchester

PROJECT OVERVIEW

Freetrade Exchange is a Grade II listed building on Manchester’s Peter Street. The building was originally built as a fabric warehouse in 1868 under the name Harvester House and was renamed after a refurbishment in 2007.

The recent revamp of this six-storey, 36,000 sq ft office building included the conversion of the lower ground floor to a 5,000 sq ft restaurant; the reconfiguration and expansion of the existing entrance; and the creation of a new entrance. The building’s basement features a gym studio, yoga/barre studio, sauna, showers, changing rooms, toilet facilities and a secure cycle storage.

Hannan Associates were employed by Clearbell Capital to undertake the Building Services Engineering Consultancy for the project.

We worked alongside Michael Laird Architects, DW Consulting, DFC, Hann Tucker and Paragon on Clearbell’s design team.

The building’s Grade II listed status meant that the M&E services needed to be carefully designed and coordinated to accommodate the existing exposed structural elements. Routing new M&E services to and throughout the basement was a challenge and required careful consideration and coordination.

A number of energy reducing design measures were incorporated into the CAT A design in order to meet Part L Building Regulations, these included;

o All electric HVAC strategy to the office area

o Air source heat pump installation providing heating and cooling.

o Air source heat pump installation providing domestic hot water.

o Ventilation via AHU’s with variable speed driven fans & heat recovery via thermal wheels.

o Automatically switched power factor correction equipment.

o Low energy lighting installation utilising LED lamp sources.

o Automatic lighting with occupancy control and daylight sensing.

o Regenerative drive technology used in the passenger lifts.

o Automatic BMS controls and energy metering system

An EPC B was achieved with minimal impact to the external listed façade. Our team undertook detailed modelling and energy assessments to identify the additional measures required to achieve this, which included:

o Improved building air permeability

o Improved office lighting power density

o ASHP domestic hot water

o Photovoltaic array



About This Project

5

CLIENT : Clearbell Capital

5

ARCHITECT : Michael Laird Architects

5

PROJECT VALUE : £4.8M

5

CONTRACT DURATION: 2021 - 2023
